Market specifications

Take a look of all the payment methods available.

Country reference Cards supported Alternative Payment Method supported

Cards

Find all the information about the card supported capabilities.

Capabilities Process Card Payments

Alternative Payments

Learn how to integrate cash, bank transfer or wallet payment.

7-eleven Maybank FPX Boost GrabPay Maybank QR Touch n´ go Shopeepay DuitNowQR

Market specifications

Do you want to know more information about Malaysia's market? Go to the APAC: The world’s leader in eCommerce market sales article.

Country reference

`country` code	`currency` code	`document` name	`document` format	`document` required?
`MY`	`MYR`	NRIC	12 digits	Yes

Cards supported

`payment_method_id`	Brand ID	Name	`payment_method_type`	Details	Allowed Flows
`CARD`	`VI`	Visa	`CARD`	Credit Card	`DIRECT` `REDIRECT`
`CARD`	`VD`	Visa Debit	`CARD`	Debit Card	`DIRECT` `REDIRECT`
`CARD`	`MC`	Mastercard	`CARD`	Credit Card	`DIRECT` `REDIRECT`
`CARD`	`MD`	Mastercard Debit	`CARD`	Debit Card	`DIRECT` `REDIRECT`
`CARD`	`UP`	Union Pay	`CARD`	Credit Card	`DIRECT` `REDIRECT`

ℹ️
To offer all the card options that may be available in your integration, send the payment_method_id as CARD.

Alternative Payment Method supported

`payment_method_id`	Name	`payment_method_type`	Details	Allowed Flows
`SL`	7-eleven	`TICKET`	Cash Payments	`REDIRECT`
`FP`	Maybank	`BANK_TRANSFER`	Bank Transfer	`REDIRECT`
`IO`	FPX	`BANK_TRANSFER`	Bank Transfer	`REDIRECT`
`MO`	Boost	`WALLET`	Wallet	`DIRECT` `REDIRECT`
`GY`	GrabPay	`WALLET`	Wallet	`DIRECT` `REDIRECT`
`MB`	Maybank QR	`WALLET`	Wallet	`DIRECT` `REDIRECT`
`TG`	Touch 'n Go	`WALLET`	Wallet	`DIRECT` `REDIRECT`
`SO`	Shopeepay	`WALLET`	Wallet	`REDIRECT`
`DQ`	DuitNowQR	`WALLET`	Wallet	`REDIRECT`

Cards

Capabilities

	Visa Credit	Visa Debit	Mastercard Credit	Mastercard Debit	Union Pay
Minimum amount	5 MYR	5 MYR	5 MYR	5 MYR	5 MYR
Refunds	Yes	Yes	Yes	Yes	Yes
Recurring	Yes	Yes	Yes	Yes	Yes
Chargeback option	Yes	Yes	Yes	Yes	Yes
Chargeback Dispute option	Yes	Yes	Yes	Yes	Yes
Descriptor	Merchant name	Merchant name	Merchant name	Merchant name	Merchant name

How to process Card Payments?

Learn how to process payments with credit and debit cards with dLocal in our Card Payments section.

Alternative Payment Method

7-eleven

7-Eleven is a Cash payment method from the biggest convenience store chain in Malaysia.

It allows customers to make online purchases and pay using cash. With stores around the country, it has a wide coverage, reaching hundreds of customers per day.

Capabilities

	7-eleven
Min. amount	5 MYR
Max. expiration time supported	2 days
Notification delay	Immediate
Refunds	Yes
Flow	`REDIRECT`

Request parameters

Property	Type	Description	Mandatory?
`amount`	Number	Amount to be charged.	Yes
`currency`	String	`MYR` Transaction currency in ISO 4217.	Yes
`country`	String	`MY` Transaction country in ISO 3166.	Yes
`payment_method_id`	String	`SL` ID of the selected payment method.	Yes
`payment_method_flow`	String	`REDIRECT`	Yes
`payer.name`	String	Name of the payer.	Yes
`payer.email`	String	Email of the payer.	Yes
`payer.document`	Number	Document of the payer.	Yes
`order_id`	Number	ID of the capture given by the merchant in their system. Think of it as an external ID of the capture.	No
`notification_url`	String	Notifications will be sent in every change of status of a payment to the `notification_url` specified by the merchant.	No

Examples

{
    "amount": 20,
    "currency": "MYR",
    "country": "MY",
    "payment_method_id": "SL",
    "payment_method_flow": "REDIRECT",
    "payer": {
        "name": "Jane Doe",
        "email": "[email protected]",
        "document": "123456789012",
        "address": {
            "country": "MY",
            "state": "Malacca",
            "city": "Malacca",
            "zip_code": "8858",
            "street": "Main St.",
            "number": "540"
        }
    },
    "order_id": "345453483kqws0",
    "description": "Tshirt",
    "notification_url": "http://merchantsite.com/notification/new",
    "callback_url": "http://merchantsite.com/success_page"
}

{
    "id": "R-4-069886a5-bde5-hy653-bae9-cb33e54f2397",
    "amount": 20,
    "currency": "MYR",
    "payment_method_id": "SL",
    "payment_method_type": "TICKET",
    "payment_method_flow": "REDIRECT",
    "country": "MY",
    "created_date": "2023-01-30T15:04:26.000+0000",
    "status": "PENDING",
    "status_detail": "The payment is pending.",
    "status_code": "100",
    "order_id": "345453483kqws0",
    "description": "Tshirt",
    "notification_url": "http://merchantsite.com/notification/new",
    "redirect_url": "https://pay.dlocal.com/gmf-apm/payments-redirect/M-3ab38f30-e279-h671-b47f-f31fa4ee0f99"
}

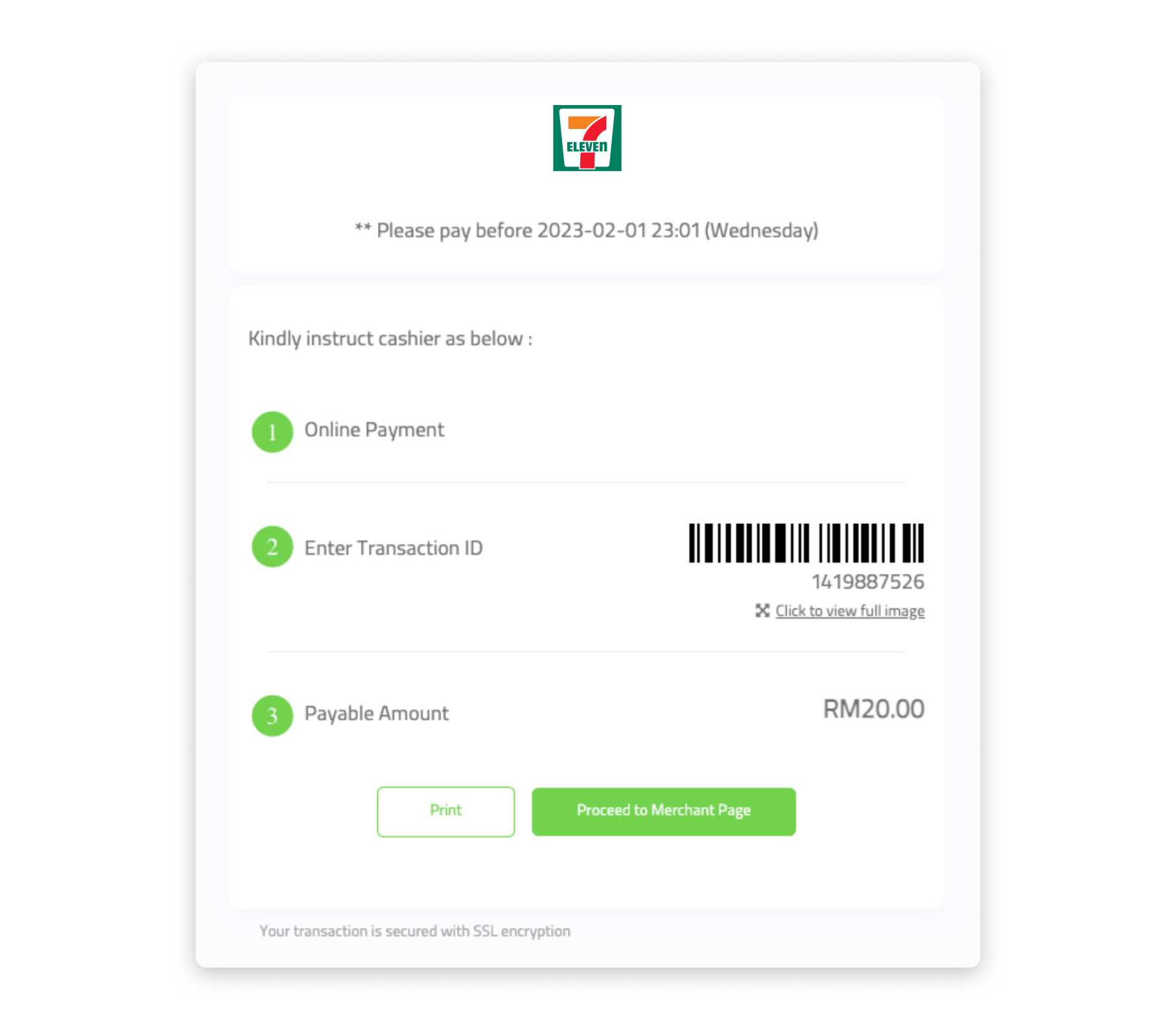

Example ticket

Example 7-eleven built with the information in the example above.

Maybank

Bank transfers are the most-used e-commerce payment method in Malaysia, with half of the e-commerce payment market.

Capabilities

	Maybank
Min. amount	5 MYR
Max. expiration time supported	35 minutes
Notification delay	Immediate
Refunds	Yes
Flow	`REDIRECT`

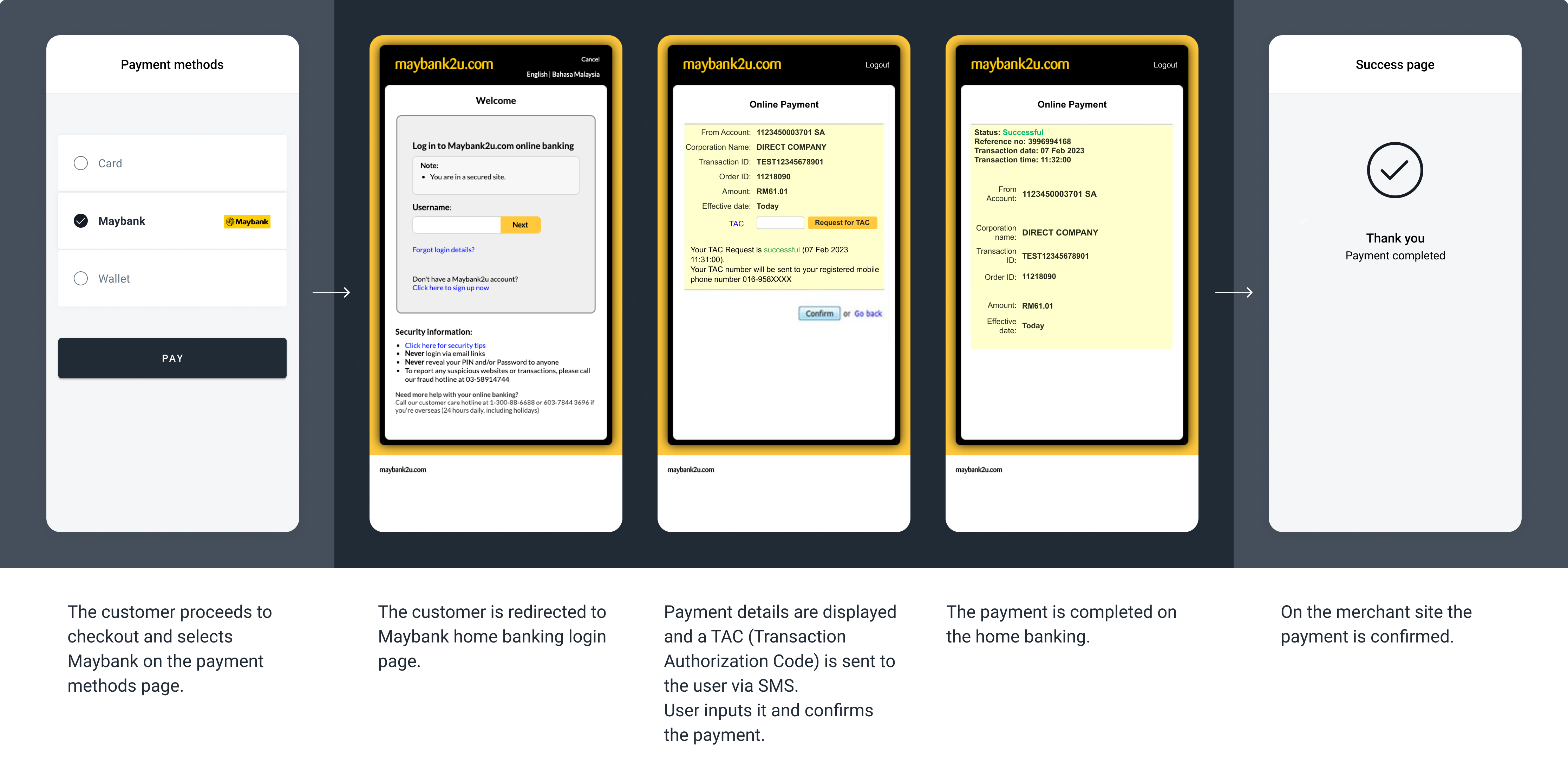

UX Flow

The screenshots illustrate a generic Maybank redirect flow.

Request parameters

Property	Type	Description	Mandatory?
`amount`	Number	Amount to be charged.	Yes
`currency`	String	`MYR` Transaction currency in ISO 4217.	Yes
`country`	String	`MY` Transaction country in ISO 3166.	Yes
`payment_method_id`	String	`FP` ID of the selected payment method.	Yes
`payment_method_flow`	String	`REDIRECT`	Yes
`payer.name`	String	Name of the payer.	Yes
`payer.email`	String	Email of the payer.	Yes
`payer.document`	Number	Document of the payer.	Yes
`order_id`	Number	ID of the capture given by the merchant in their system. Think of it as an external ID of the capture.	No
`notification_url`	String	Notifications will be sent in every change of status of a payment to the `notification_url` specified by the merchant.	No

Examples

{
    "amount": 50,
    "currency": "MYR",
    "country": "MY",
    "payment_method_id": "FP",
    "payment_method_flow": "REDIRECT",
    "payer": {
        "name": "Jane Doe",
        "email": "[email protected]",
        "document": "123456789012",
        "address": {
            "country": "MY",
            "state": "Malacca",
            "city": "Malacca",
            "zip_code": "8858",
            "street": "Main St.",
            "number": "540"
        }
    },
    "order_id": "345453483kqws0",
    "description": "Tshirt",
    "notification_url": "http://merchantsite.com/notification/new",
    "callback_url": "http://merchantsite.com/success_page"
}

{
    "id": "R-4-c732e5b4-24b3-46a6-5433-cd86c70f6f35",
    "amount": 50,
    "currency": "MYR",
    "payment_method_id": "FP",
    "payment_method_type": "BANK_TRANSFER",
    "payment_method_flow": "REDIRECT",
    "country": "MY",
    "created_date": "2023-01-30T15:29:03.000+0000",
    "status": "PENDING",
    "status_detail": "The payment is pending.",
    "status_code": "100",
    "order_id": "345453483kqws0",
    "description": "Tshirt",
    "notification_url": "http://merchantsite.com/notification/new",
    "redirect_url": "https://pay.dlocal.com/gmf-apm/payments-redirect/M-872d8b37-la73-465a-a2cf-d3248c61c350"
}

FPX

FPX is a reliable internet-based payment gateway that allows real-time payments for online purchases hassle-free or bill payments using your Savings / Current account or even Credit Card.

FPX is operated by Payments Network Malaysia Sdn Bhd (PayNet)

Capabilities

	FPX
Min. amount	5 MYR
Max. expiration time supported	35 minutes
Notification delay	Immediate
Refunds	Yes
Flow	`REDIRECT`

UX Flow

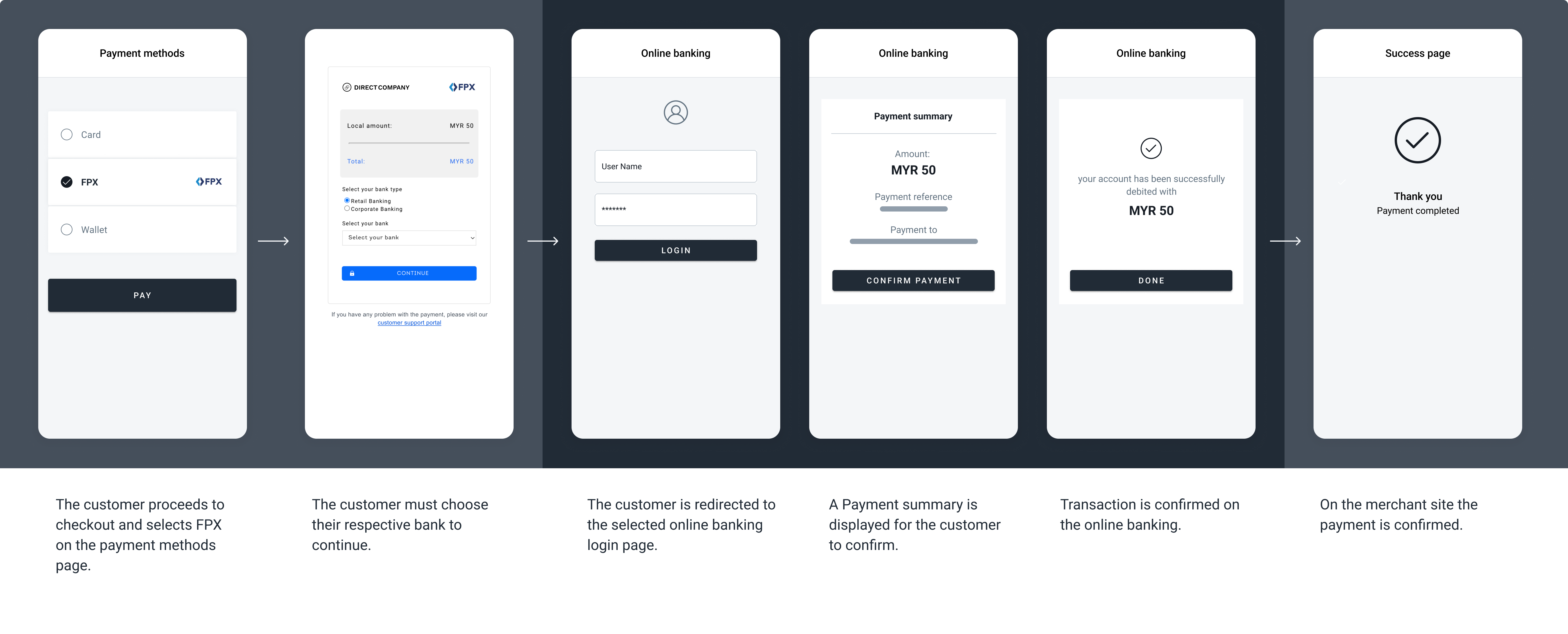

The screenshots illustrate a generic FPX redirect flow. The specifics of the flow can change depending on the bank selected to complete the transaction.

Request parameters

Property	Type	Description	Mandatory?
`amount`	Number	Amount to be charged.	Yes
`currency`	String	`MYR` Transaction currency in ISO 4217.	Yes
`country`	String	`MY` Transaction country in ISO 3166.	Yes
`payment_method_id`	String	`IO` ID of the selected payment method.	Yes
`payment_method_flow`	String	`REDIRECT`	Yes
`payer.name`	String	Name of the payer.	Yes
`payer.email`	String	Email of the payer.	Yes
`payer.document`	Number	Document of the payer.	Yes
`order_id`	Number	ID of the capture given by the merchant in their system. Think of it as an external ID of the capture.	No
`notification_url`	String	Notifications will be sent in every change of status of a payment to the `notification_url` specified by the merchant.	No

Examples

{
    "amount": 50,
    "currency": "MYR",
    "country": "MY",
    "payment_method_id": "IO",
    "payment_method_flow": "REDIRECT",
    "payer": {
        "name": "Jane Doe",
        "email": "[email protected]",
        "document": "123456789012",
        "address": {
            "country": "MY",
            "state": "Malacca",
            "city": "Malacca",
            "zip_code": "8858",
            "street": "Main St.",
            "number": "540"
        }
    },
    "order_id": "345453483kqws0",
    "description": "Tshirt",
    "notification_url": "http://merchantsite.com/notification/new",
    "callback_url": "http://merchantsite.com/success_page"
}

{
    "id": "R-4-101d40ab-g5ty-4735-8c97-a21c9427db91",
    "amount": 50,
    "currency": "MYR",
    "payment_method_id": "IO",
    "payment_method_type": "BANK_TRANSFER",
    "payment_method_flow": "REDIRECT",
    "country": "MY",
    "created_date": "2023-01-30T15:49:37.000+0000",
    "status": "PENDING",
    "status_detail": "The payment is pending.",
    "status_code": "100",
    "order_id": "345453483kqws0",
    "description": "Tshirt",
    "notification_url": "http://merchantsite.com/notification/new",
    "redirect_url": "https://pay.dlocal.com/gmf-apm/payments-continue/M-723a51dd-901w-4522-8905-453eaad7149a"
}

Boost

Wallets are very popular in Malaysia, which is leading its Southeast Asian neighboring countries in terms of the usage of digital wallets.

In terms of competition, among the top e-wallets are Boost, Touch 'n Go, Maybank QR, ShopeePay, and GrabPay. All these wallets are constantly rising in popularity.

Capabilities

	Boost
Min. amount	5 MYR
Max. expiration time supported	5 minutes
Notification delay	Immediate
Refunds	Yes
Flow	`DIRECT` `REDIRECT`

UX Flow

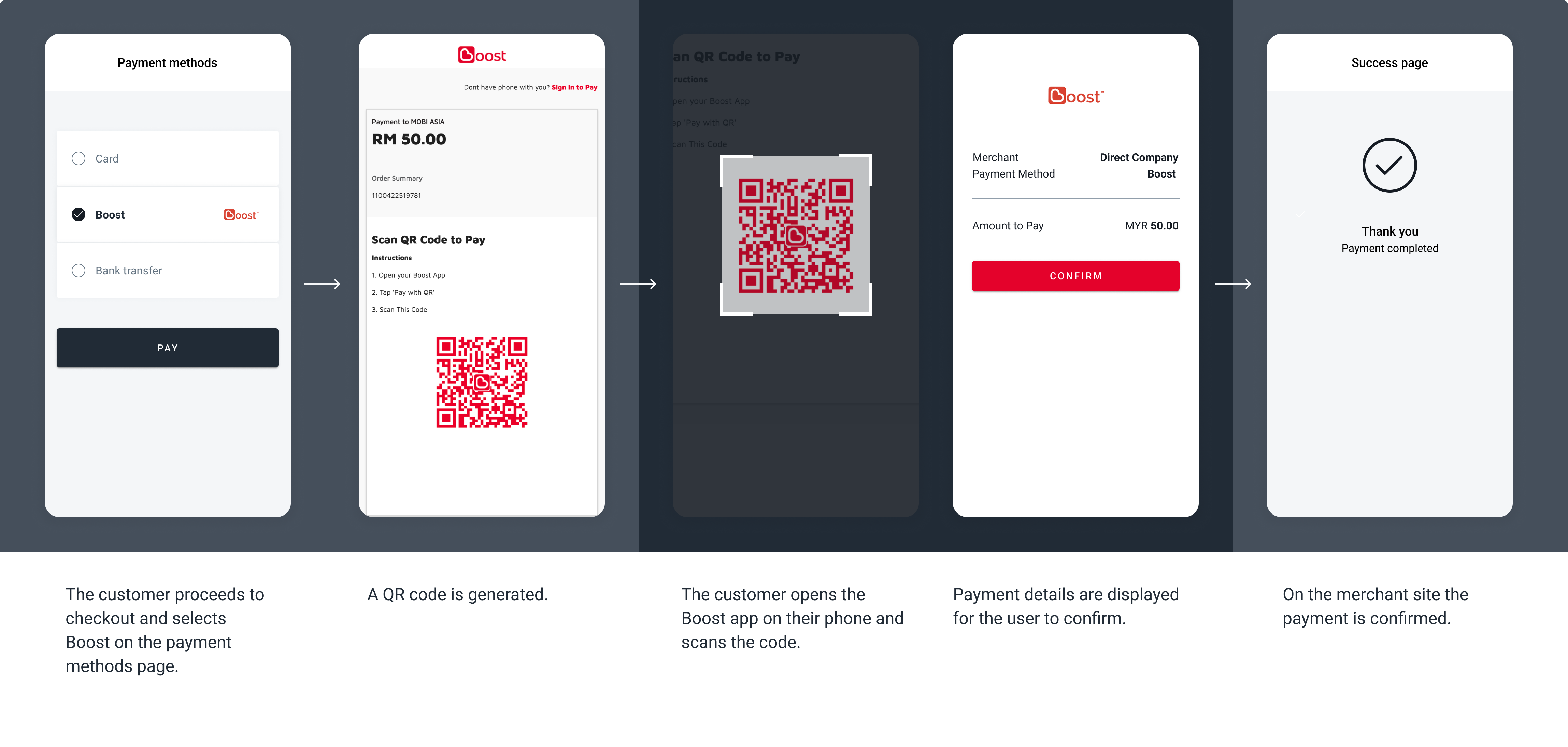

QR code flow

The screenshots illustrate a generic Boost redirect flow on a browser through QR Code. — The screenshots illustrate a generic Boost redirect flow on a browser through QR code.

Payment in-app flow

The screenshots illustrate a generic Boost redirect flow on mobile choosing the Tap and Pay option to complete the payment in-app.

Request parameters

Property	Type	Description	Mandatory?
`amount`	Number	Amount to be charged.	Yes
`currency`	String	`MYR` Transaction currency in ISO 4217.	Yes
`country`	String	`MY` Transaction country in ISO 3166.	Yes
`payment_method_id`	String	`MO` ID of the selected payment method.	Yes
`payment_method_flow`	String	`DIRECT` or `REDIRECT`	Yes
`payer.name`	String	Name of the payer.	Yes
`payer.email`	String	Email of the payer.	Yes
`payer.document`	Number	Document of the payer.	Yes
`order_id`	Number	ID of the capture given by the merchant in their system. Think of it as an external ID of the capture.	No
`notification_url`	String	Notifications will be sent in every change of status of a payment to the `notification_url` specified by the merchant.	No

Examples

{
    "amount": 50,
    "currency": "MYR",
    "country": "MY",
    "payment_method_id": "MO",
    "payment_method_flow": "REDIRECT",
    "payer": {
        "name": "Jane Doe",
        "email": "[email protected]",
        "document": "123456789012",
        "address": {
            "country": "MY",
            "state": "Malacca",
            "city": "Malacca",
            "zip_code": "8858",
            "street": "Main St.",
            "number": "540"
        }
    },
    "order_id": "345453483kqws0",
    "description": "Tshirt",
    "notification_url": "http://merchantsite.com/notification/new",
    "callback_url": "http://merchantsite.com/success_page"
}

{
    "id": "R-4-b3721a18-7ff1-487c-fr43-d4637fc3a94d",
    "amount": 50,
    "currency": "MYR",
    "payment_method_id": "MO",
    "payment_method_type": "TICKET",
    "payment_method_flow": "REDIRECT",
    "country": "MY",
    "created_date": "2023-01-30T15:51:05.000+0000",
    "status": "PENDING",
    "status_detail": "The payment is pending.",
    "status_code": "100",
    "order_id": "345453483kqws0",
    "description": "Tshirt",
    "notification_url": "http://merchantsite.com/notification/new",
    "redirect_url": "https://pay.dlocal.com/gmf-apm/payments-redirect/M-3ecd987f-7a7d-4e32-a0ba-5aebabba732d"
}

GrabPay

Wallets are very popular in Malaysia, which is leading its Southeast Asian neighboring countries in terms of the usage of digital wallets.

In terms of competition, among the top e-wallets are Boost, Touch 'n Go, Maybank QR, ShopeePay, and GrabPay. All these wallets are constantly rising in popularity.

Capabilities

	GrabPay
Min. amount	5 MYR
Max. expiration time supported	5 minutes
Notification delay	Immediate
Refunds	Yes
Flow	`DIRECT` `REDIRECT`

UX Flow

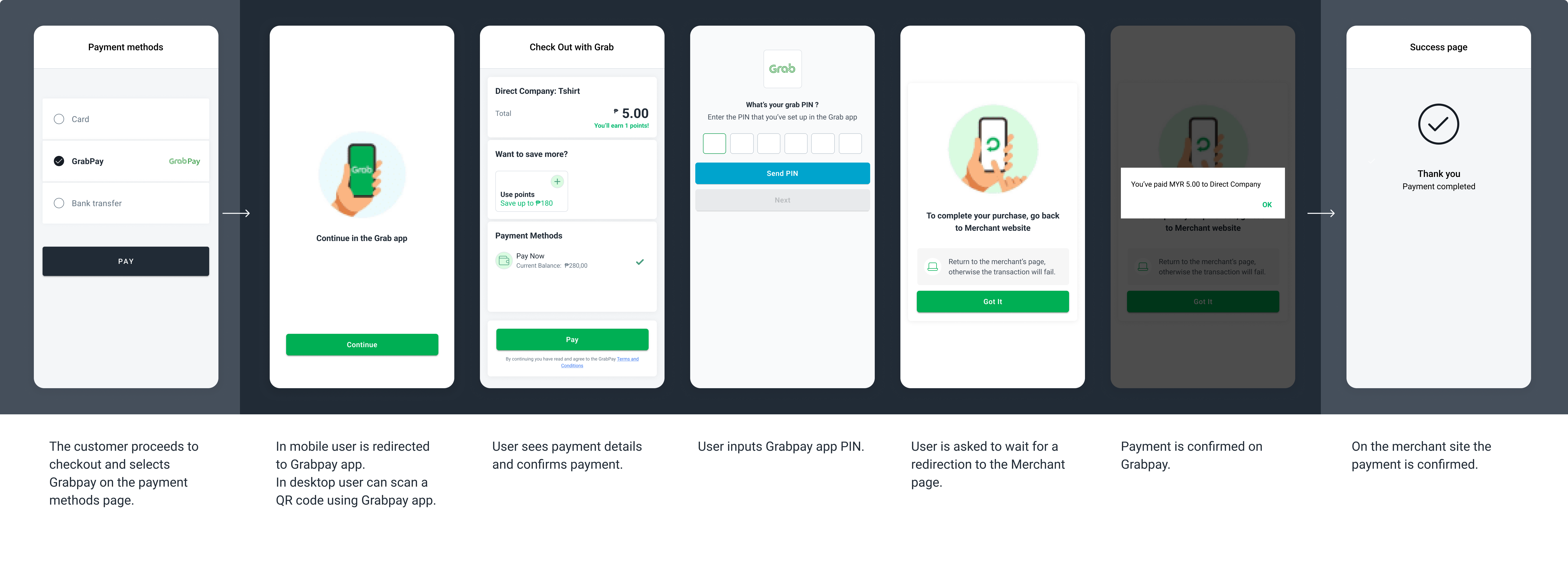

The screenshots illustrate a generic GrabPay redirect flow.

Request parameters

Property	Type	Description	Mandatory?
`amount`	Number	Amount to be charged.	Yes
`currency`	String	`MYR` Transaction currency in ISO 4217.	Yes
`country`	String	`MY` Transaction country in ISO 3166.	Yes
`payment_method_id`	String	`GY` ID of the selected payment method.	Yes
`payment_method_flow`	String	`DIRECT` or `REDIRECT`	Yes
`payer.name`	String	Name of the payer.	Yes
`payer.email`	String	Email of the payer.	Yes
`payer.document`	Number	Document of the payer.	Yes
`order_id`	Number	ID of the capture given by the merchant in their system. Think of it as an external ID of the capture.	No
`notification_url`	String	Notifications will be sent in every change of status of a payment to the `notification_url` specified by the merchant.	No

Examples

{
    "amount": 50,
    "currency": "MYR",
    "country": "MY",
    "payment_method_id": "GY",
    "payment_method_flow": "REDIRECT",
    "payer": {
        "name": "Jane Doe",
        "email": "[email protected]",
        "document": "123456789012",
        "address": {
            "country": "MY",
            "state": "Malacca",
            "city": "Malacca",
            "zip_code": "8858",
            "street": "Main St.",
            "number": "540"
        }
    },
    "order_id": "345453483kqws0",
    "description": "Tshirt",
    "notification_url": "http://merchantsite.com/notification/new",
    "callback_url": "http://merchantsite.com/success_page"
}

{
    "id": "R-4-ae9209f1-2f8e-4801-gfd3-4117cd888ce8",
    "amount": 50,
    "currency": "MYR",
    "payment_method_id": "GY",
    "payment_method_type": "TICKET",
    "payment_method_flow": "REDIRECT",
    "country": "MY",
    "created_date": "2023-01-30T15:53:00.000+0000",
    "status": "PENDING",
    "status_detail": "The payment is pending.",
    "status_code": "100",
    "order_id": "345453483kqws0",
    "description": "Tshirt",
    "notification_url": "http://merchantsite.com/notification/new",
    "redirect_url": "https://pay.dlocal.com/gmf-apm/payments-redirect/M-10b9a53f-3421-4373-bcd6-fe65304ee445"
}

Maybank QR

Wallets are very popular in Malaysia, which is leading its Southeast Asian neighboring countries in terms of the usage of digital wallets.

In terms of competition, among the top e-wallets are Boost, Touch 'n Go, Maybank QR, ShopeePay, and GrabPay. All these wallets are constantly rising in popularity.

Capabilities

	Maybank QR
Min. amount	5 MYR
Max. expiration time supported	5 minutes
Notification delay	Immediate
Refunds	Yes
Flow	`DIRECT` `REDIRECT`

UX Flow

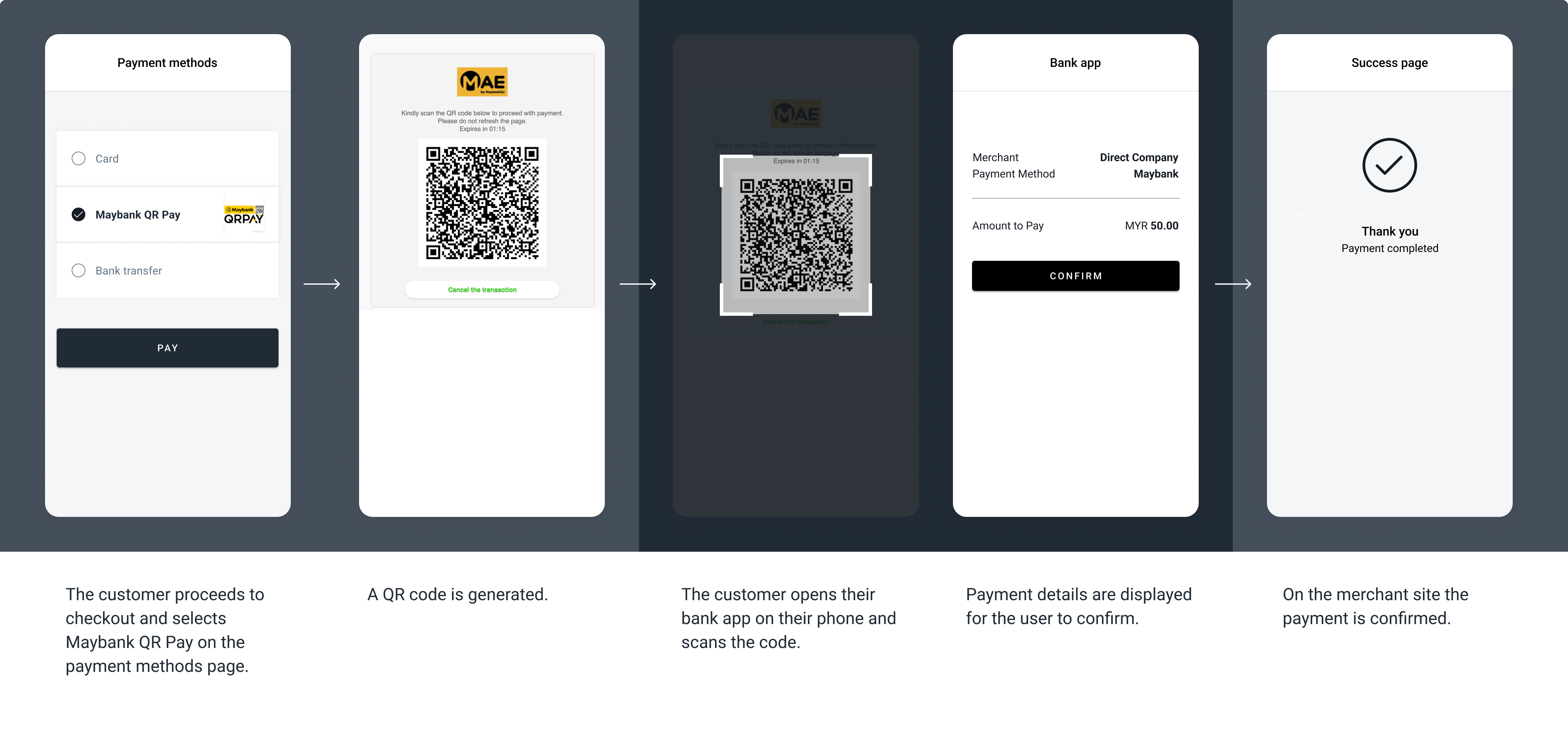

The screenshots illustrate a generic Maybank QR Pay redirect flow through a QR code.

Request parameters

Property	Type	Description	Mandatory?
`amount`	Number	Amount to be charged.	Yes
`currency`	String	`MYR` Transaction currency in ISO 4217.	Yes
`country`	String	`MY` Transaction country in ISO 3166.	Yes
`payment_method_id`	String	`MB` ID of the selected payment method.	Yes
`payment_method_flow`	String	`DIRECT` or `REDIRECT`	Yes
`payer.name`	String	Name of the payer.	Yes
`payer.email`	String	Email of the payer.	Yes
`payer.document`	Number	Document of the payer.	Yes
`order_id`	Number	ID of the capture given by the merchant in their system. Think of it as an external ID of the capture.	No
`notification_url`	String	Notifications will be sent in every change of status of a payment to the `notification_url` specified by the merchant.	No

Examples

{
    "amount": 50,
    "currency": "MYR",
    "country": "MY",
    "payment_method_id": "MB",
    "payment_method_flow": "REDIRECT",
    "payer": {
        "name": "Jane Doe",
        "email": "[email protected]",
        "document": "123456789876",
        "address": {
            "country": "MY",
            "state": "Malacca",
            "city": "Malacca",
            "zip_code": "8858",
            "street": "Main St.",
            "number": "540"
        }
    },
    "order_id": "345453483kqws0",
    "description": "Tshirt",
    "notification_url": "http://merchantsite.com/notification/new",
    "callback_url": "http://merchantsite.com/success_page"
}

{
    "id": "R-4-f9c65093-yt65-4c1f-bb29-b2fdaec47ccb",
    "amount": 50,
    "currency": "MYR",
    "payment_method_id": "MB",
    "payment_method_type": "TICKET",
    "payment_method_flow": "REDIRECT",
    "country": "MY",
    "created_date": "2023-03-10T13:15:40.000+0000",
    "status": "PENDING",
    "status_detail": "The payment is pending.",
    "status_code": "100",
    "order_id": "345453483kqws0",
    "description": "Tshirt",
    "notification_url": "http://merchantsite.com/notification/new",
    "redirect_url": "https://pay.dlocal.com/gmf-apm/payments-redirect/M-c9c43cac-e86b-4f31-6t65-57929d695b88"
}

Touch 'n Go

Wallets are very popular in Malaysia, which is leading its Southeast Asian neighboring countries in terms of the usage of digital wallets.

In terms of competition, among the top e-wallets are Boost, Touch 'n Go, Maybank QR, ShopeePay, and GrabPay. All these wallets are constantly rising in popularity.

Capabilities

	Touch 'n Go
Min. amount	5 MYR
Max. expiration time supported	5 minutes
Notification delay	Immediate
Refunds	Yes
Flow	`DIRECT` `REDIRECT`

UX Flow

QR code flow

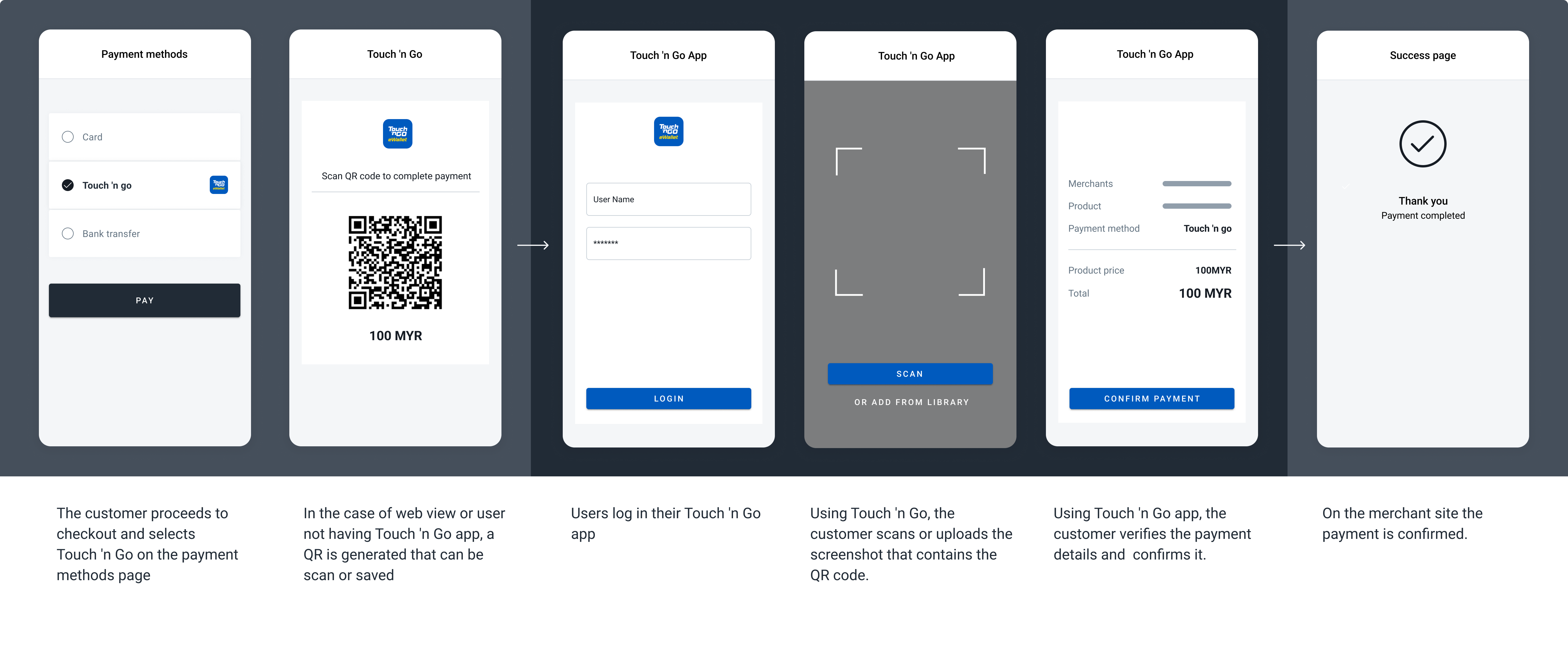

The screenshots illustrate a generic Touch 'n go redirect flow through a QR code available for web and desktop views.

Wallet flow

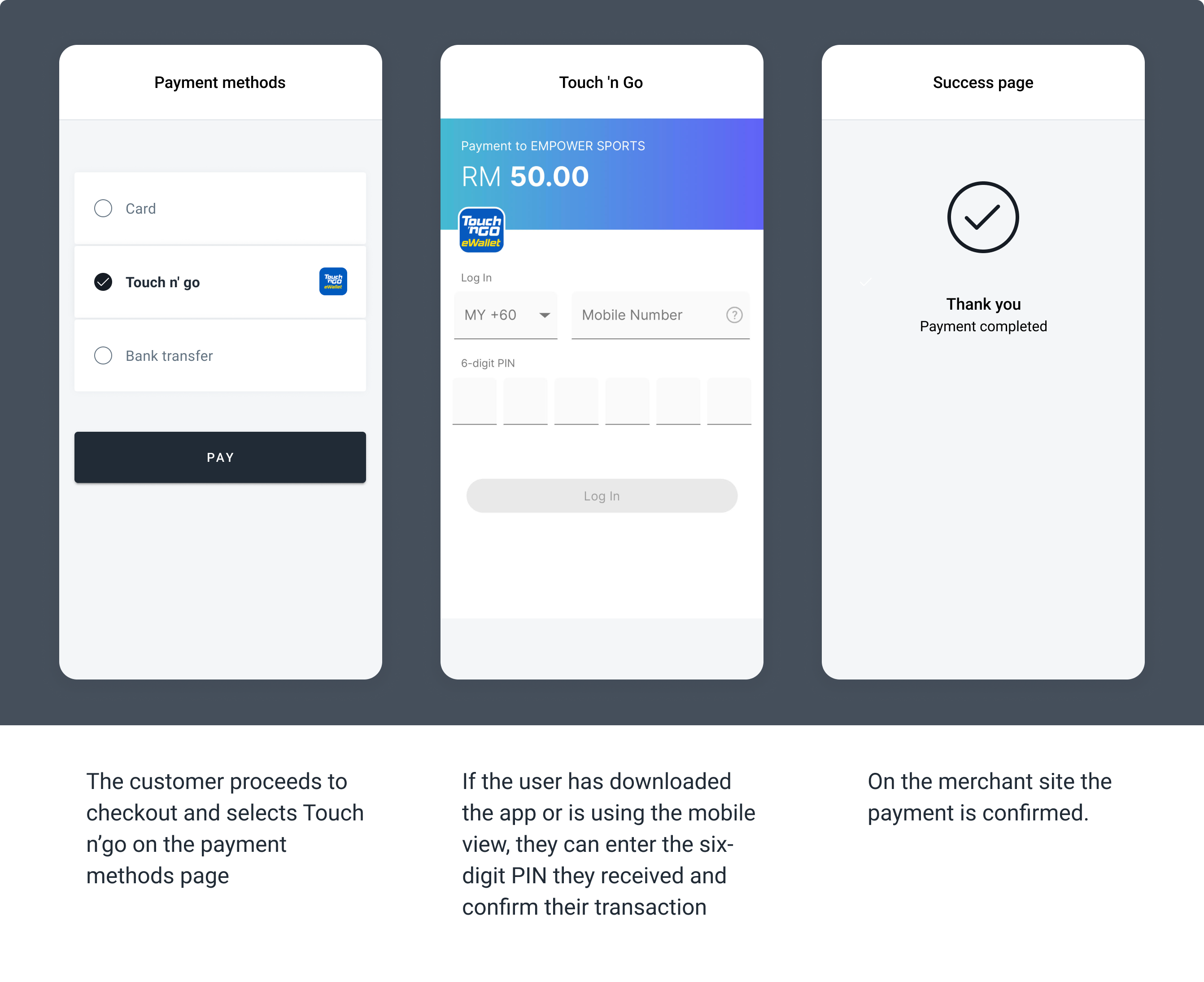

The screenshots illustrate a generic Touch 'n go wallet redirect flow.

Request parameters

Property	Type	Description	Mandatory?
`amount`	Number	Amount to be charged.	Yes
`currency`	String	`MYR` Transaction currency in ISO 4217.	Yes
`country`	String	`MY` Transaction country in ISO 3166.	Yes
`payment_method_id`	String	`TG` ID of the selected payment method.	Yes
`payment_method_flow`	String	`DIRECT` or `REDIRECT`	Yes
`payer.name`	String	Name of the payer.	Yes
`payer.email`	String	Email of the payer.	Yes
`payer.document`	Number	Document of the payer.	Yes
`order_id`	Number	ID of the capture given by the merchant in their system. Think of it as an external ID of the capture.	No
`notification_url`	String	Notifications will be sent in every change of status of a payment to the `notification_url` specified by the merchant.	No

Examples

{
    "amount": 50,
    "currency": "MYR",
    "country": "MY",
    "payment_method_id": "TG",
    "payment_method_flow": "REDIRECT",
    "payer": {
        "name": "Jane Doe",
        "email": "[email protected]",
        "document": "123456789012",
        "address": {
            "country": "MY",
            "state": "Malacca",
            "city": "Malacca",
            "zip_code": "8858",
            "street": "Main St.",
            "number": "540"
        }
    },
    "order_id": "345453483kqws0",
    "description": "Tshirt",
    "notification_url": "http://merchantsite.com/notification/new",
    "callback_url": "http://merchantsite.com/success_page"
}

{
    "id": "R-4-4678d8f3-bc63-5rt4-bb68-72f3d52d7ce9",
    "amount": 50,
    "currency": "MYR",
    "payment_method_id": "TG",
    "payment_method_type": "TICKET",
    "payment_method_flow": "REDIRECT",
    "country": "MY",
    "created_date": "2023-01-30T15:56:10.000+0000",
    "status": "PENDING",
    "status_detail": "The payment is pending.",
    "status_code": "100",
    "order_id": "345453483kqws0",
    "description": "Tshirt",
    "notification_url": "http://merchantsite.com/notification/new",
    "redirect_url": "https://pay.dlocal.com/gmf-apm/payments-redirect/M-c5731556-6554-408e-ad02-80d68d1c586c"
}

Shopeepay

Wallets are very popular in Malaysia, which is leading its Southeast Asian neighboring countries in terms of the usage of digital wallets.

In terms of competition, among the top e-wallets are Boost, Touch 'n Go, Maybank QR, ShopeePay, and GrabPay. All these wallets are constantly rising in popularity.

Capabilities

	Shopeepay
Min. amount	5 MYR
Max. expiration time supported	90 minutes
Notification delay	Immediate
Refunds	Yes
Flow	`REDIRECT`

UX Flow

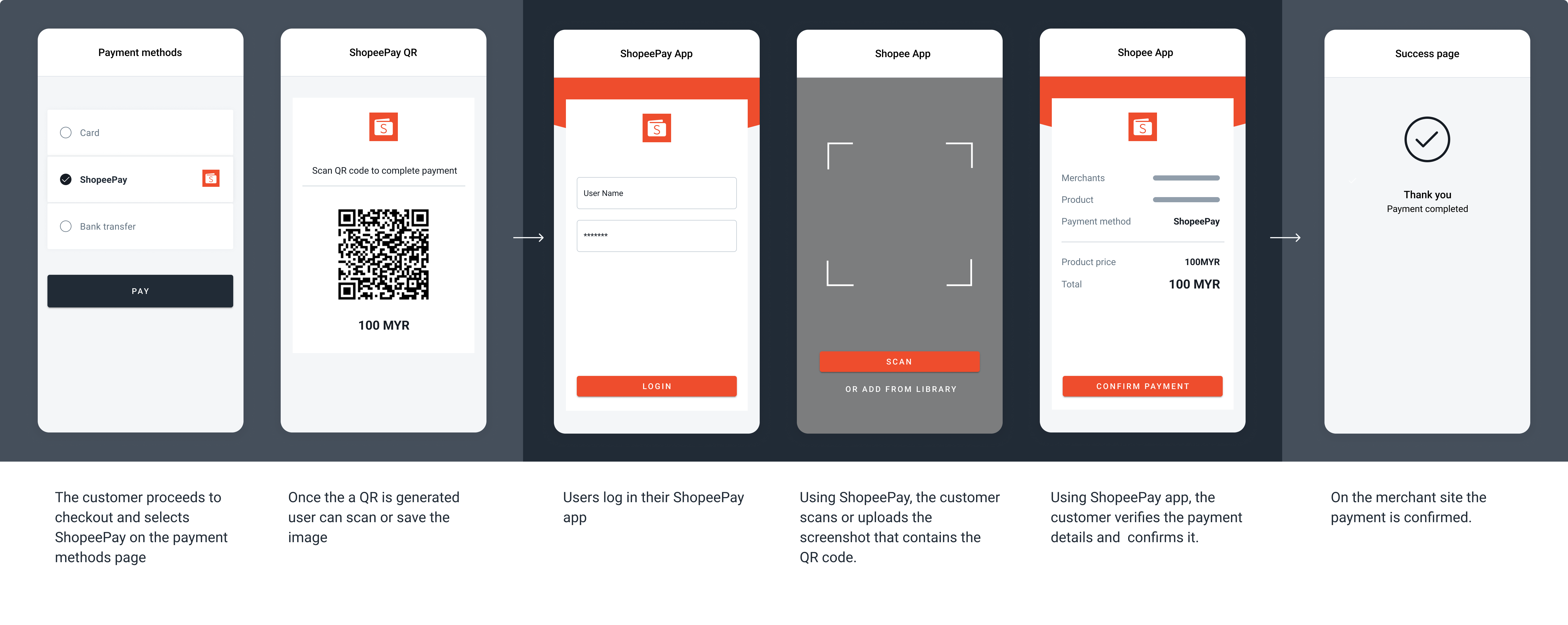

The screenshots illustrate a generic ShopeePay redirect flow through a QR code.

Request parameters

Property	Type	Description	Mandatory?
`amount`	Number	Amount to be charged.	Yes
`currency`	String	`MYR` Transaction currency in ISO 4217.	Yes
`country`	String	`MY` Transaction country in ISO 3166.	Yes
`payment_method_id`	String	`SO` ID of the selected payment method.	Yes
`payment_method_flow`	String	`REDIRECT`	Yes
`payer.name`	String	Name of the payer.	Yes
`payer.email`	String	Email of the payer.	Yes
`payer.document`	Number	Document of the payer.	Yes
`order_id`	Number	ID of the capture given by the merchant in their system. Think of it as an external ID of the capture.	No
`notification_url`	String	Notifications will be sent in every change of status of a payment to the `notification_url` specified by the merchant.	No

Examples

{
    "amount": 50,
    "currency": "MYR",
    "country": "MY",
    "payment_method_id": "SO",
    "payment_method_flow": "REDIRECT",
    "payer": {
        "name": "Jane Doe",
        "email": "[email protected]",
        "document": "123456789012",
        "address": {
            "country": "MY",
            "state": "Malacca",
            "city": "Malacca",
            "zip_code": "8858",
            "street": "Main St.",
            "number": "540"
        }
    },
    "order_id": "345453483kqws",
    "description": "Tshirt",
    "notification_url": "http://merchantsite.com/notification/new",
    "callback_url": "http://merchantsite.com/success_page"
}

{
    "id": "R-4-5461d8a7-f565-4328-6ytf-95e541640584",
    "amount": 50,
    "currency": "MYR",
    "payment_method_id": "SO",
    "payment_method_type": "TICKET",
    "payment_method_flow": "REDIRECT",
    "country": "MY",
    "created_date": "2023-02-17T18:09:42.000+0000",
    "status": "PENDING",
    "status_detail": "The payment is pending.",
    "status_code": "100",
    "order_id": "345453483kqws0w",
    "description": "Tshirt",
    "notification_url": "http://merchantsite.com/notification/new",
    "redirect_url": "https://pay.dlocal.com/gmf-apm/payments-redirect/M-862004ff-6013-thy6-8432-e30b2f388beb"
}

DuitNowQR

An interoperable QR standard that allows Malaysians to make payments and receive funds from any participating Bank and eWallet with just one QR code.

Capabilities

	DuitNowQR
Min. amount	5 MYR
Max. expiration time supported	5 minutes
Notification delay	Immediate
Refunds	Yes
Flow	`REDIRECT`

UX Flow

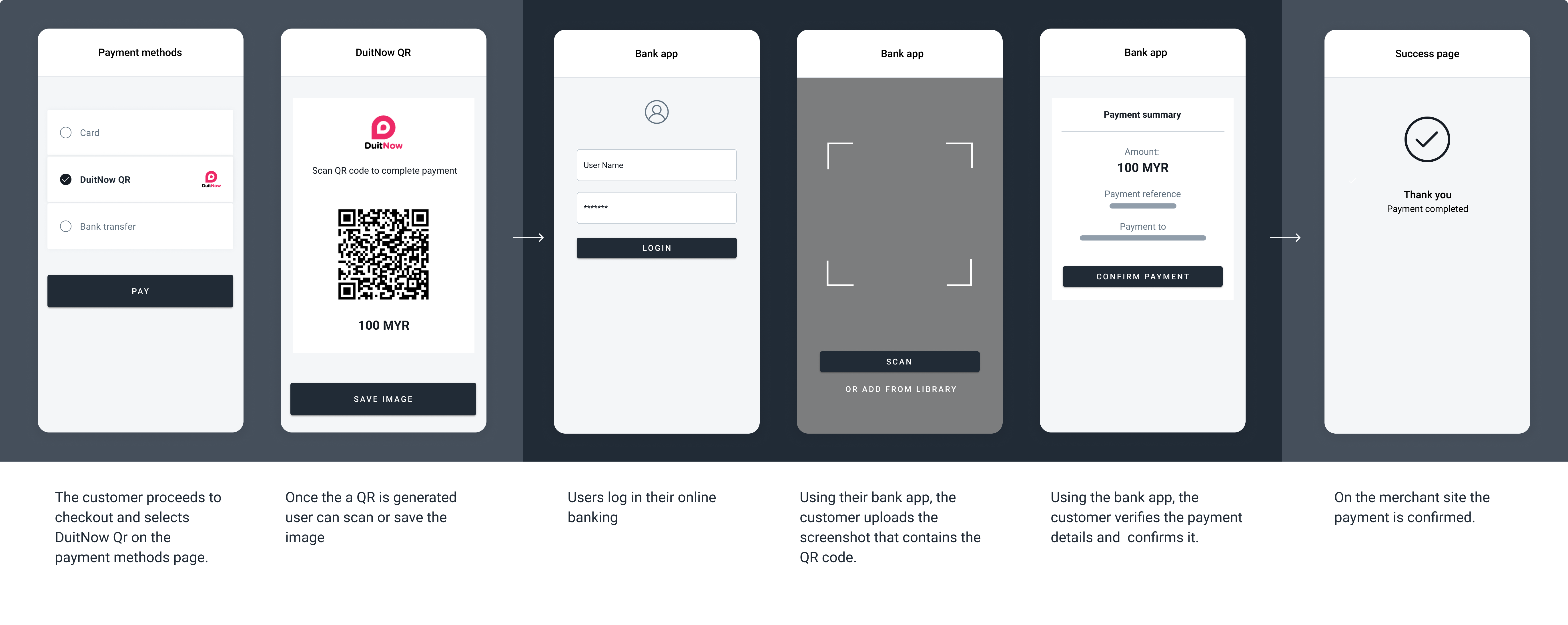

The screenshots illustrate a generic DuitNowQR redirect flow through a QR code. The specifics of the flow can change depending on the payment method selected to complete the transaction.

Request parameters

Property	Type	Description	Mandatory?
`amount`	Number	Amount to be charged.	Yes
`currency`	String	`MYR` Transaction currency in ISO 4217.	Yes
`country`	String	`MY` Transaction country in ISO 3166.	Yes
`payment_method_id`	String	`DQ` ID of the selected payment method.	Yes
`payment_method_flow`	String	`REDIRECT`	Yes
`payer.name`	String	Name of the payer.	Yes
`payer.email`	String	Email of the payer.	Yes
`payer.document`	Number	Document of the payer.	Yes
`order_id`	Number	ID of the capture given by the merchant in their system. Think of it as an external ID of the capture.	No
`notification_url`	String	Notifications will be sent in every change of status of a payment to the `notification_url` specified by the merchant.	No

Examples

{
    "amount": 50,
    "currency": "MYR",
    "country": "MY",
    "payment_method_id": "DQ",
    "payment_method_flow": "REDIRECT",
    "payer": {
        "name": "Jane Doe",
        "email": "[email protected]",
        "phone": "+006286123456",
        "document": "123456789012",
        "address": {
            "country": "MY",
            "state": "Malacca",
            "city": "Malacca",
            "zip_code": "8858",
            "street": "Main St.",
            "number": "540"
        }
    },
    "order_id": "345453483kqws0",
    "description": "Tshirt",
    "notification_url": "http://merchantsite.com/notification/new",
    "callback_url": "http://merchantsite.com/success_page"
}

{
    "id": "R-4-d7c221a9-ab7b-48c9-4r56-c72e7d869d86",
    "amount": 50,
    "currency": "MYR",
    "payment_method_id": "DQ",
    "payment_method_type": "TICKET",
    "payment_method_flow": "REDIRECT",
    "country": "MY",
    "created_date": "2023-02-17T17:54:45.000+0000",
    "status": "PENDING",
    "status_detail": "The payment is pending.",
    "status_code": "100",
    "order_id": "345453483kqws0w",
    "description": "Tshirt",
    "notification_url": "http://merchantsite.com/notification/new",
    "redirect_url": "https://pay.dlocal.com/gmf-apm/payments-redirect/M-c650346a-c177-4d72-45tr-f4b98f6a2185"
}
